** IMPORTANT UPDATE** the design of the tools have changed slightly on the latest stock going forward. There is no longer a 'prong' cut-out and now is a continuous piece.  Most frames now have a flat surface around perimeter of bearing, which now enables the force of the load experienced when removing stubborn bearings to be distributed more evenly. Temporary picture displayed.

Bearing Tool specific for extracting and installing Frame Pivots Bearings in full suspension mountain bike frames.

Made from tool steel, to fit 6804 Bearings in size 20x32x7mm (ID x OD x Depth).

Bearing Tool specific for extracting and installing Frame Pivots Bearings in full suspension mountain bike frames.

Made from tool steel, to fit 608 Bearings in size 8x22x7mm (ID x OD x Depth).

This listing is for a full set of Frame Pivot Bearings only. No other hardware such as nuts, bolts, washers will be supplied.
Any pictures indicated in this listing is for reference to the year/design of frame in question.
Please click into this product and read the full description for further informaton about the bearings provided.

ALTERNATIVE PART NUMBERS: MH-P03K,  MR122, MR054
FSA PRODUCT CODE: 160-0014000000 (Was 160-1648)

In long description, scroll to bottom of page to see direct fit alternatives.

Inner x Outer x Depth (mm): 30.15 x 41 x 6.5
Inch Dia: 1 - 1 / 8”
Angle / Chamfer (Deg): 36 / 45
Made by FSA

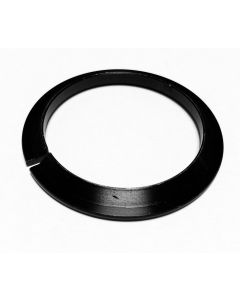

Fork Crown Bearing Race 1.5"
Split design for easier fitting and removal
45 Degree Chamfer
Part Ref: KBB9049
Pack QTY: 1

Fork Crown Bearing Race 1-1/8"
Split design for easier fitting and removal
45 Degree Chamfer
Part Ref: KBB9048
Pack QTY: 1

Designed to remove and install the bush/bearing located at the end of many rear shocks, without having to resort to hammers and punches.

This listing is for a full set of Frame Pivot Bearings only (10 bearings from 3 part refs). No other hardware such as nuts, bolts, washers will be supplied.

Bearings to fit model designation M047-01.  Same bearings supplied as Canyon bearing kit ref GP0087-01

Any pictures indicated in this listing is for reference to the year/design of frame in question.
Please click into this product and read the full description for further informaton about the bearings provided.

This listing is for a full set of Frame Pivot Bearings only (12 Bearings, which includes the 2 x Upper Shock Eyelet Bearings). No other hardware such as nuts, bolts, washers will be supplied.

Note, the frame changed design in 2021, but the bearings remained the same - the picture shows the 2019/20 frame

Any pictures indicated in this listing is for reference to the year/design of frame in question.
Please click into this product and read the full description for further informaton about the bearings provided.

This listing is for a full set of Frame Pivot Bearings only (8 Bearings from 3 different part numbers).
No other hardware such as nuts, bolts, washers will be supplied.

Important Note: we supply the original kit designed for this frame which uses 6900, 7902 and 7902-1Z bearings.  The UK importer fitted non-angular contact bearings to some MK1 Hightowers which uses 6900, 6902 and 6902-1Z bearings.  If you have this 2nd option, then you need to purchase the Hightower 2  (2019-2021) kit

Any pictures indicated in this listing is for reference to the year/design of frame in question.
Please click into this product and read the full description for further informaton about the bearings provided.
