Frame Pivot Bearings

Inner x Outer x Depth (mm): 8 x 16 x 5/7mm (5mm thick bearing with an ID that extends 1mm on both ends of bearing)

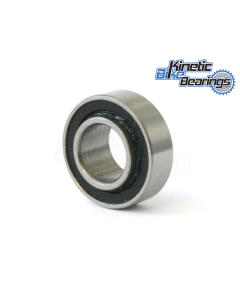

Used on: Frames (Ghost Bikes - AMR & ASX)

Inner x Outer x Depth (mm): 8 x 16 x 5/6.5 (inner race extends 1.5mm on one side)
Used on: Frames

Inner x Outer x Depth (mm): 8 x 16 x 5/8
Used on: Frames

Note: Outer race is 5mm depth. The Inner race extends both sides giving total depth of 8mm

Inner x Outer x Depth (mm): 9 x 17 x 5mm
Used on: MTB Frame Suspension Pivots

Inner x Outer x Depth (mm): 10 x 22 x 6mm
Used on: MTB Frame Suspension Pivots

Inner x Outer x Depth (mm): 10 x 22 x 6
Used on: Frames

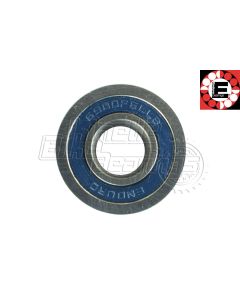

Note: FE Means "Flanged" and "Extended" - Flange is 2mm taking overall dia to 24mm, Inner Race Extends 2mm, taking depth to 8mm

Inner x Outer x Depth (mm): 10 x 22/24 x 6/8mm
Used on: Trek Session 2009-2011 & various Gary Fisher Roscoe, Rumblefish, Superfly

FLANGED AND OFFSET BEARING (2MM FLANGE AND 2MM OFFSET) USED ON GIANT TRANCE 27.5 SERIES 2
Inner x Outer x Depth (mm): 10 x 22/24 x 6/8mm
Used on: MTB Frame Suspension Pivots (Giant Trance 27.5 Series 2)

Inner x Outer x Depth (mm): 10 x 22 x 6mm
Used on: MTB Frame Suspension Pivots

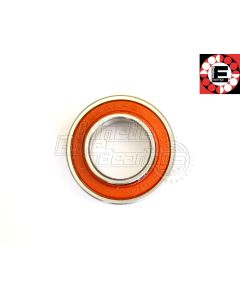

Note: "E" FOR EXTENSION - THE INNER RACE EXTENDS 3MM
Inner x Outer x Depth (mm): 10 x 22 x 6mm/9mm
Used on: Pivot Full Suspension MTB Frames
